Name: MT50 - LCD Display Remote Meter for Tracer AN TRIRON N Tracer-BN VS LS-B Series MPPT/PWM Solar Controller EPEVER
Price: 35.00 USD
Availability: InStock

MT50 - LCD Display Remote Meter for Tracer AN TRIRON N Tracer-BN VS LS-B Series MPPT/PWM Solar Controller EPEVER

Description
Reviews

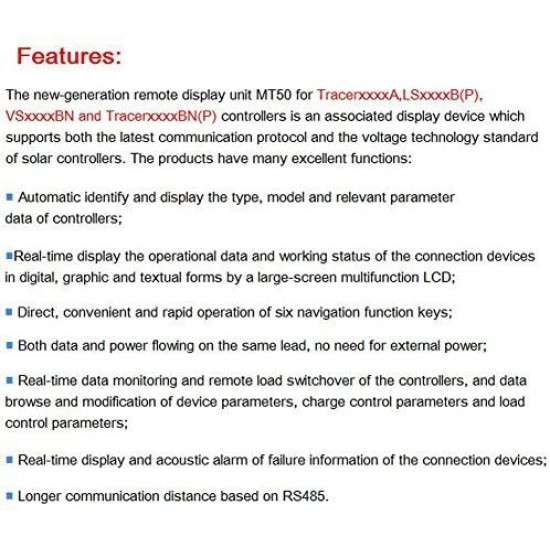

Features:

Automatic identify the controller, and display the type, model and relevant parameter data

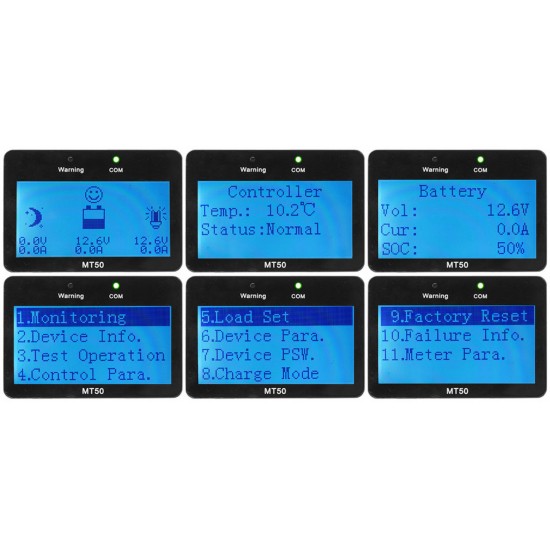

Large-screen multifunction LCD displays all the operational data and system working status in digital, graphic and textual forms
With six navigation function keys, the operation is direct, convenient and rapid
Real-time energy statistics recording
Both data and data flowing on the same lead ,no need for external power
Real-time monitoring and acoustic alarm of failure information of the controller
Longer communication distance based on RS485

Specifications:

Self-consumption	Backlight and acoustic alarm on<65mA Backlight on<23mA Backlight off <15mA

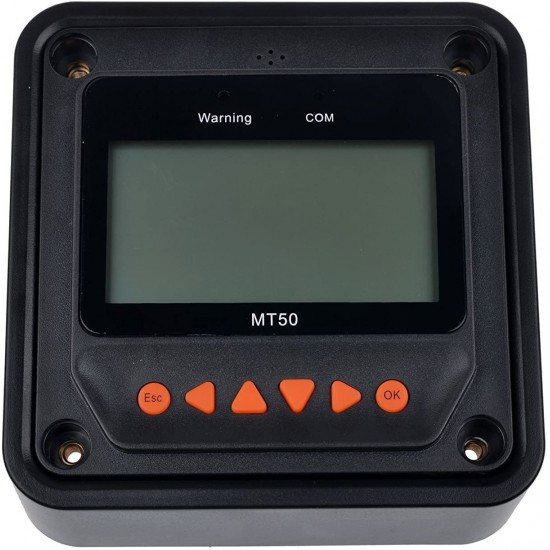

Faceplate dimensions	98×98 mm / 3.86×3.86 in

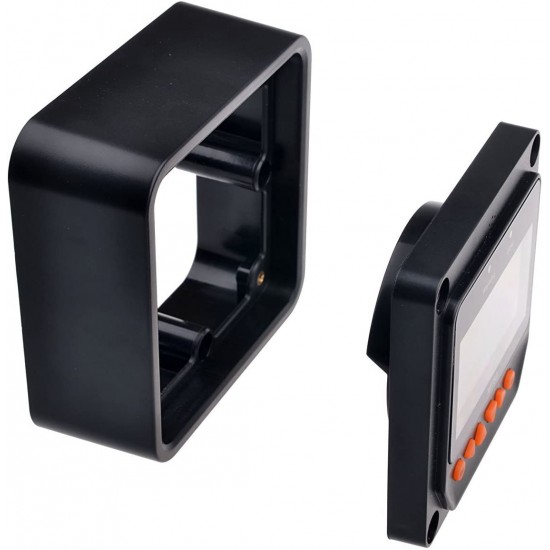

Frame dimensions	114×114 mm / 4.49×4.49 in

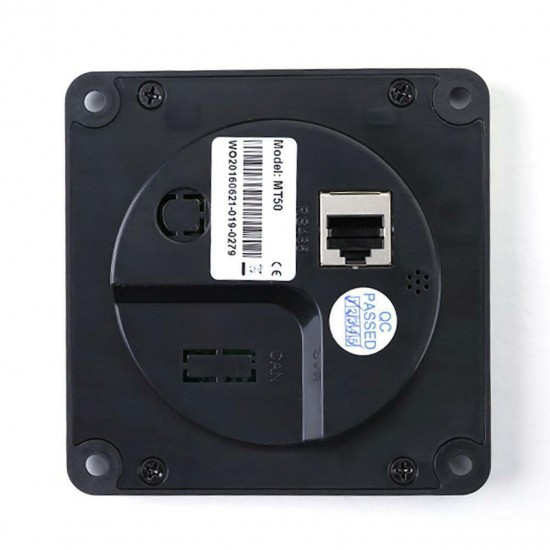

Connector type	RJ45
Meter cable	Standard 2m, max .50m
Meter weight	0.190 Kg
Ambient Temperature	-20℃~+70℃/-4℉~158℉
